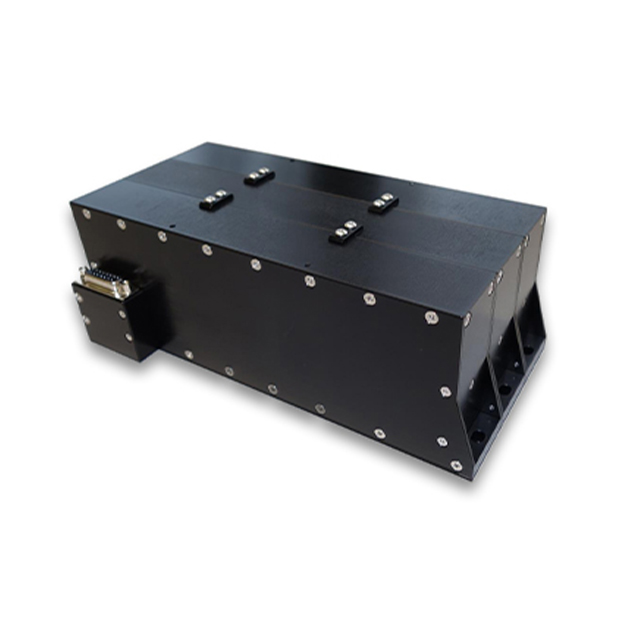

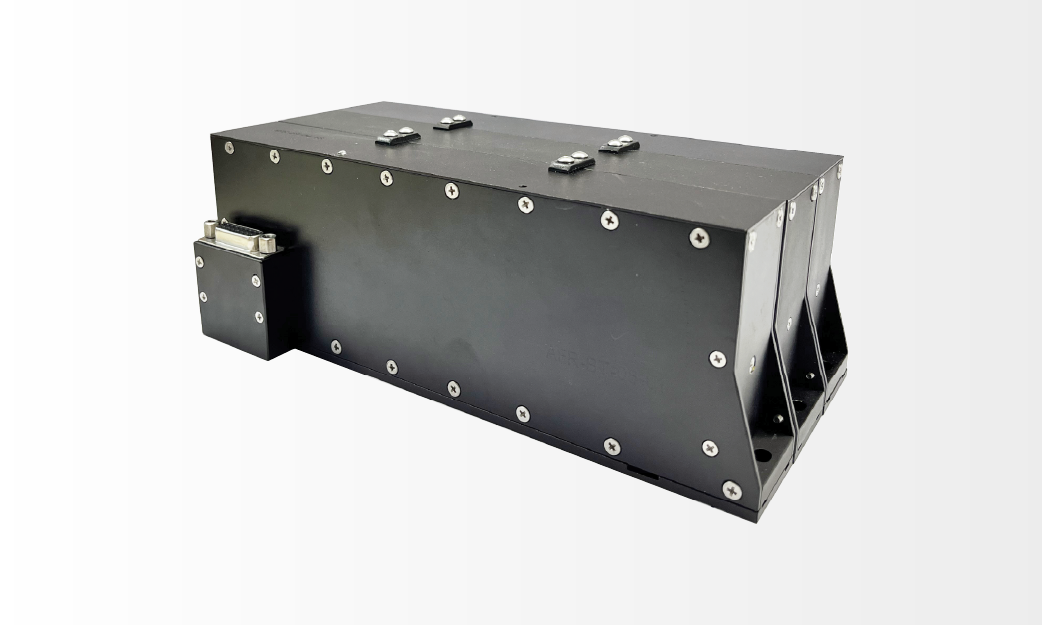

BATTERY BAT-110
The BAT-110 by Azista BST Aerospace Private Limited is a modular battery system for satellites. It is based on the Lithium Ferro Phosphate (Li-FePO4) cells. ABA’s Li-FePO4 battery technology offers 10x more cycles over Li-Io or Li-Po batteries and it is significantly less hazardous. The battery block is protected from overcharging (non-destructive), tolerant against deep discharge (non-destructive) and offers cell balancing. Its direct predecessor is space-proven and has a 5-year design life in LEO.
| CHARACTERISTICS |
DESCRIPTION |
| Size |
240x119x87mm³ |
| Weight |
3000g |
| Nominal Voltage |
23.1V |
| Capacity |
172Wh |
| Storage Temperature |
-30°C to +50°C |
| Operating Temperature |
-20°C to +40°C |
| Design Life |
5 years LEO Tested for >30000 Cycles @ 1C & 10% DoD |
| Space Heritage |
Yes |
| Radiation Test (Co60) |
30 krad |
| DETAILED CAPABILITIES |
DESCRIPTION |
| Power Draw |
Peak @ 4 deg. C
| <690W |
| Recommended @ 1 deg. C |
<170W |
| Deep Discharge Tolerance |
Non-destructive external protection recommended (Schmitt trigger) |
| Charging |
| Peak |
<2.5A per string |
| Recommended |
<1.0A per string |
| Over Charge Protection |
Non-destructive & resettable shunt |
| Lifetime |
| Accelerated Lifetime Testing |
3000 Cycles @ 1C charge / discharge & 100 % DoD Result: <3% Capacity fade |
| Modularity |
| Voltage |
23.1V standard Scalable for 12V, 15V, 18V, 28V |
| Capacity |
2.5Ah per string, 1-10 strings |
