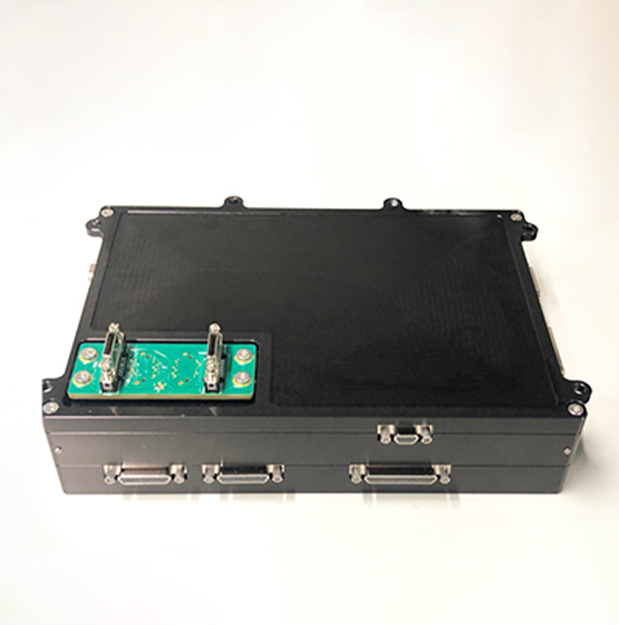

PAYLOAD SUPPORT UNIT
The Payload Support Unit (PLSU) by Azista BST Aerospace is a sophisticated electronic device designed to operate a payload and receive, store, process & compress the payload data. It further includes encryption and a CCSDS engine. Additional functions are to control the payload temperature (Heat) and operate a focus mechanism (FOCM).
| CHARACTERISTICS | DESCRIPTION |
|---|---|
| Input from payload | Up to 10Gbit/s data input (raw) User defined interfaces (FPGA) LVDS, Camera Link, GigE, USB |
| Processing | User defined processing (FPGA) Radiometric & geometric image Correction dTDI (Image Stacking) JPEG(LS/2000/-) / PNG / PNM / FELICS Compression H.265 Video Compression |
| Storage | 1TB storage size 850 MB/s write speed |
| Encryption | 128bit AES-GCM Diffi Hellman - RSA Key 3072 bit Longer key length on request |
| CCSDS | CCSDS 133.1-B-2 CCSDS 355.0-B-1 CCSDS 732.0-B-3 CCSDS 131.0-B-3 |
| Output | Up to 10Gbit/s data input (raw) User defined interfaces (FPGA) LVDS, GigE, USB |
| Dimensions | 53.0 x 139.8 x 194.6 mm3 |
| Mass | 985 ± 30 g |
| Nominal voltage | 3.3 V @Data Processing Unit (DPU) 23.1 V @Heat & FOCM |
| Power consumption | Depending on heaters and DPU usage Average: < 8 W |
| Radiation Hardness | 20 kRad @ Heat & FOCM 30 kRad @ DPU |
| Operating Temperature | -20°C to + 40°C |
| Design Life (LEO) | 5 years |
